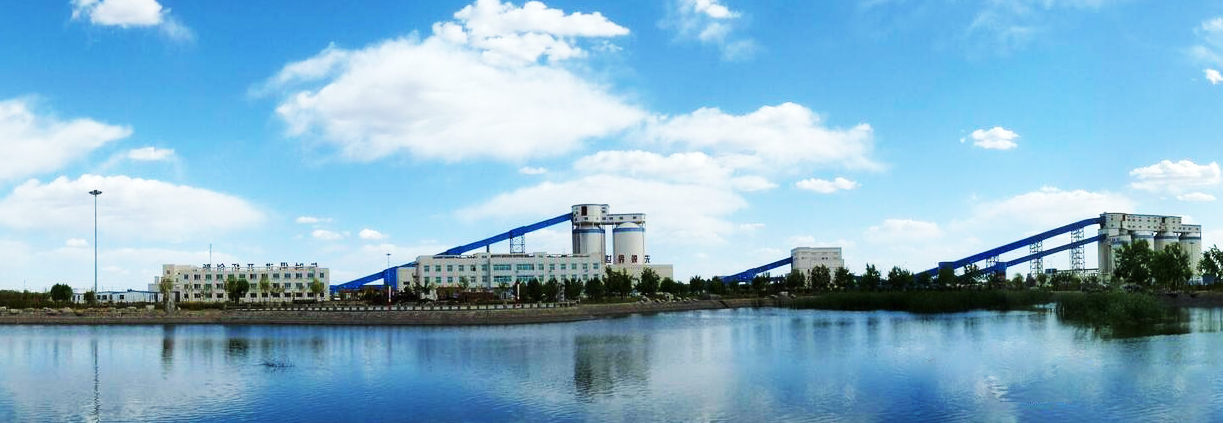

Yushuwan Coal Mine is a wholly-owned subsidiary of Yulin Coal & Electricity under Shaanxi Yulin Energy Group. Since it was put into operation in 2012, its annual production capacity has reached 25 million tons, and it is a backbone enterprise in the local coal industry, and it has been awarded with the honorary titles of “National Level Safety Production Standardized Mines”, “China Safe, Highly Productive and Highly Efficient Special Grade Mines”, “China Advanced Coal Mines” and “China Coal Double Ten Best Mines” for many years in a row. For many years, the company has been awarded the honorary titles of “National Level Safe Production Standardized Mine”, “China Safe, High-Yield and High-Efficiency Mine”, “China Coal Advanced Mine”, “China Coal Double Top Mines” and so on by national, provincial and municipal governments.

Recently, Yushuwan Coal Mine has actively responded to the national call for the construction of smart mines by introducing the integrated solution of TiTLIS Smart Console and HYAVC Distributed Attendant System, which comprehensively improves the mine's production efficiency, safety level and environmental protection performance.

As a national key mining area, intelligent construction can significantly improve the safety production level of mines, and realize real-time monitoring and accurate management of mine production through the introduction of intelligent console and distributed sitting system. It effectively prevents accidents, improves production efficiency, optimizes resource allocation, reduces operating costs, promotes the digital transformation of the coal industry, enhances the core competitiveness and sustainable development of enterprises, and is of great significance in promoting the modernization process of the entire coal industry.

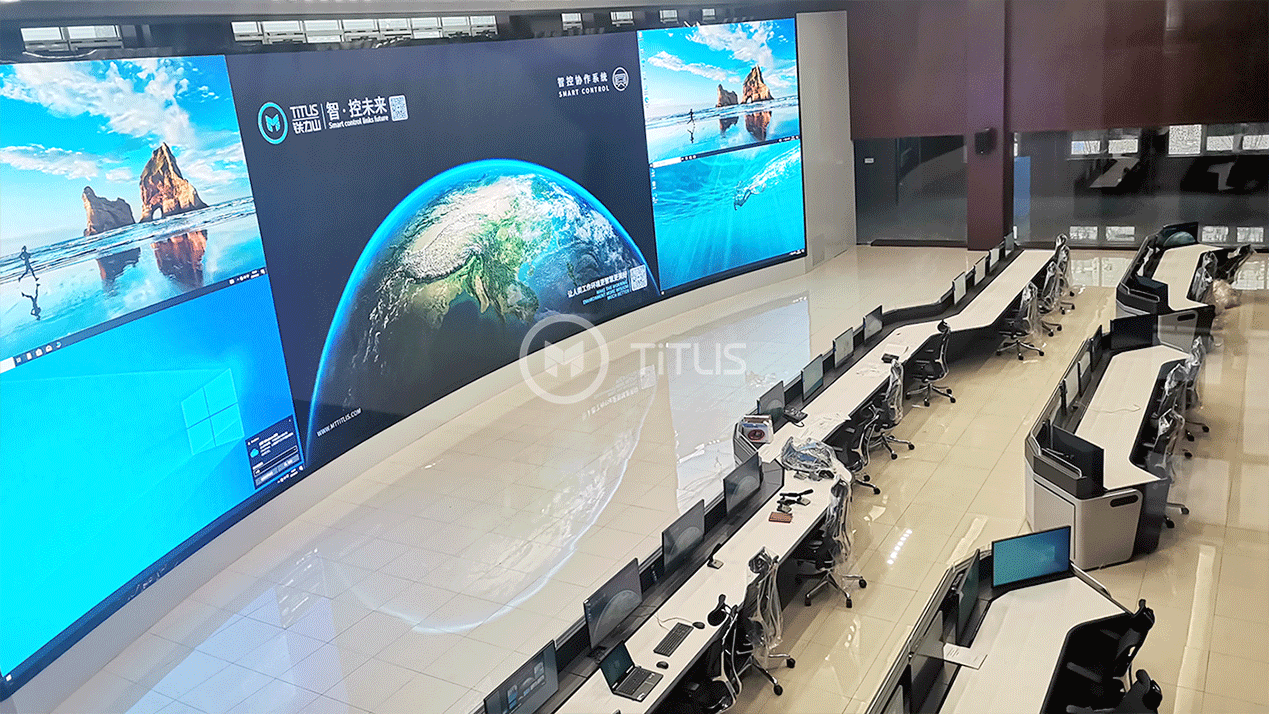

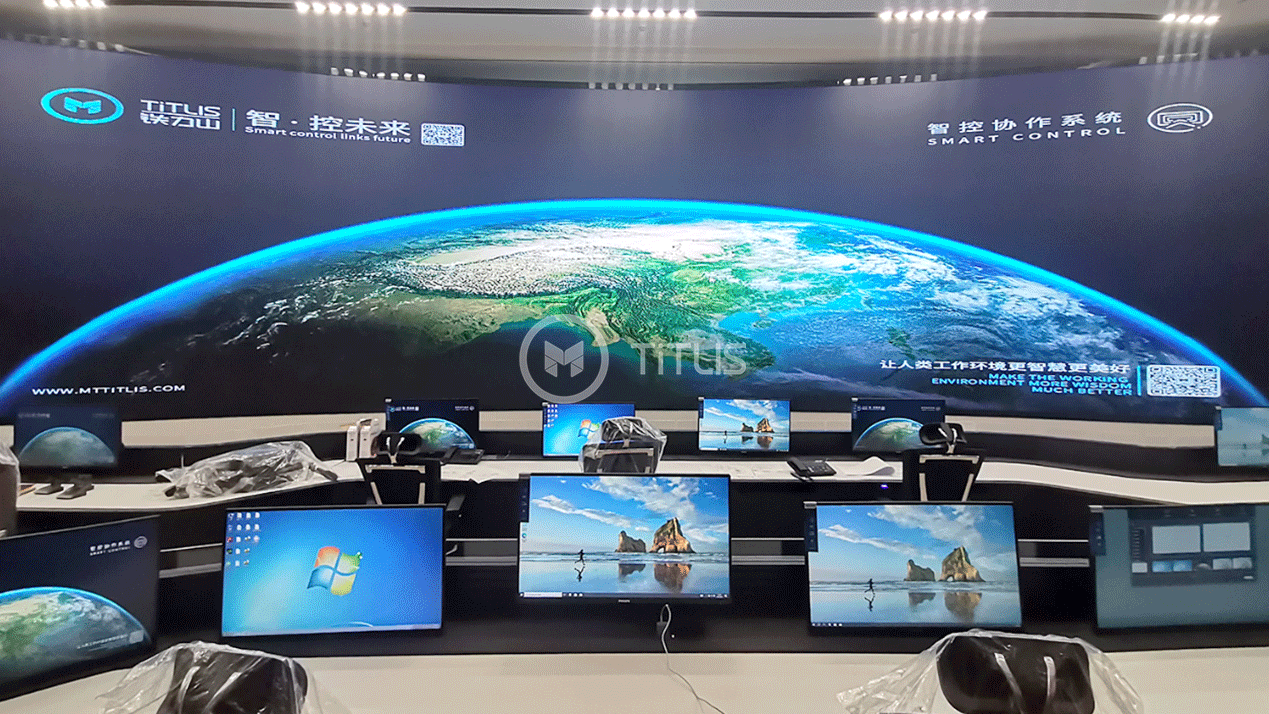

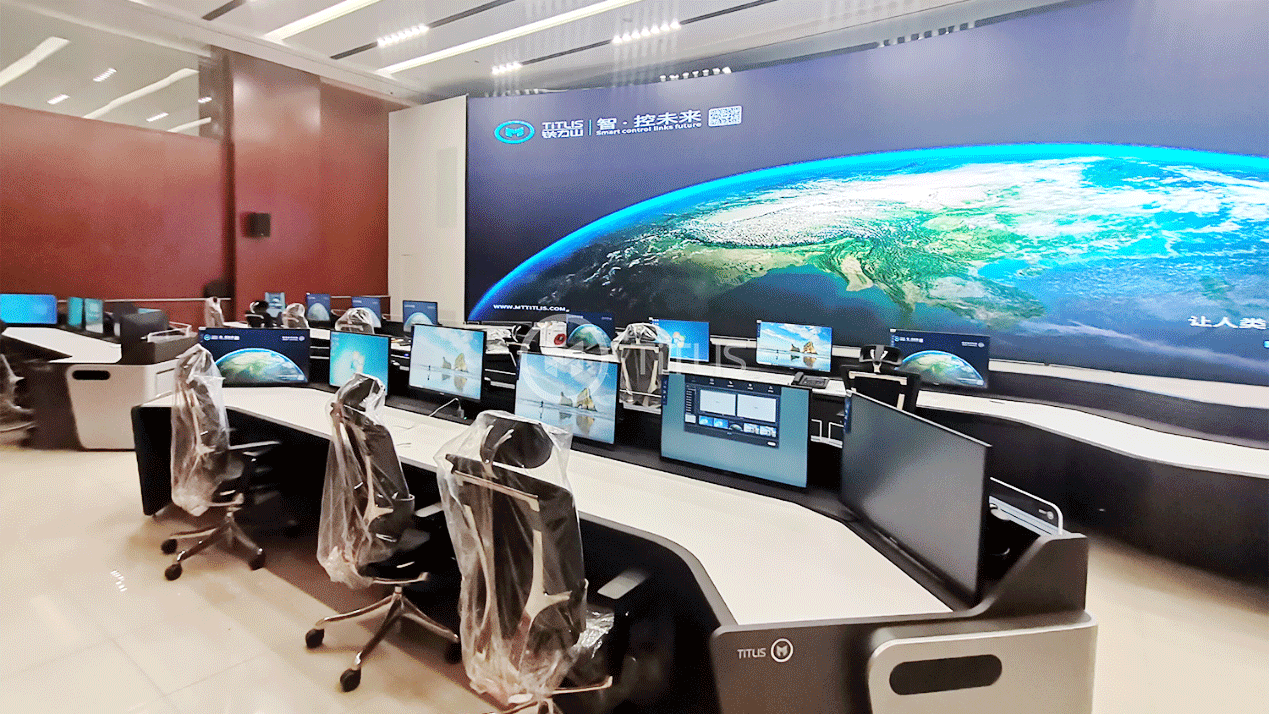

The project applies TiTLIS “MT-C-F” console + “ASTROGRAPH” UHD seat integration solution, which is a professional console that seamlessly integrates various equipments with professional heat dissipation and cable management to ensure efficient and stable operation of various equipments. The professional console seamlessly integrates various devices with professional heat dissipation and cable management to ensure efficient and stable operation of various devices. At the same time, the “ASTROGRAPH” UHD seating solution realizes overall control and intelligent collaboration of 100 channels of audio and video signals, meets ultra-high-definition picture quality presentation and extremely low-latency transmission, and has an all-around visual control experience and ultra-high security.

1, the overall control of audio and video signals and intelligent synergy

“ASTROGRAPH”UHD seat management system integrates the functions of management, coordination, manipulation, communication, safety control and so on, and supports the centralized access management of a huge amount of signals, which means that all the audio and video signals related to coal mine production and safety monitoring can be managed and dispatched uniformly in the command center of the coal mine. And through the intelligent cooperative mechanism, it can optimize the distribution and utilization of signal resources, quickly respond to emergencies in coal mine production, improve the efficiency of command and decision-making, and ensure production safety.

2、Ultra-High-Definition picture quality and lower latency

3、Convenient signal source control and collaborative efficiency enhancement

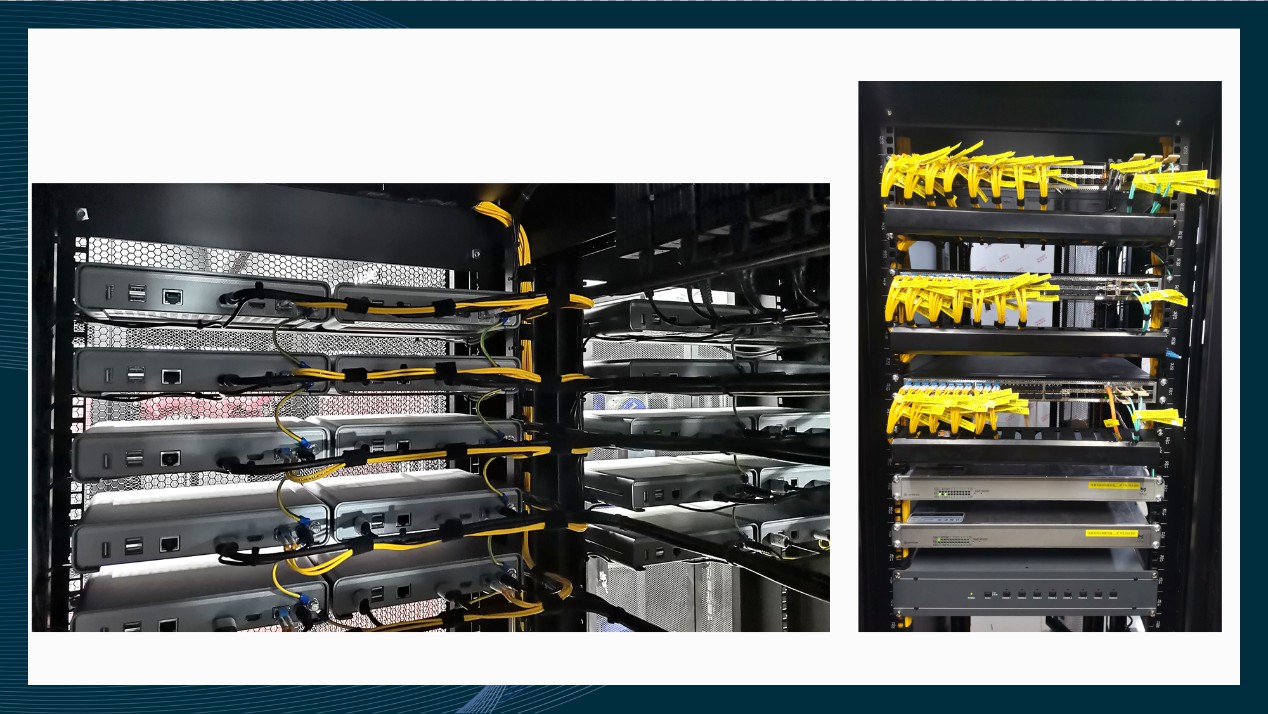

“ASTROGRAPH” ultra-high-definition seat solution supports a set of keyboard and mouse to control multiple signal sources, through the mouse slide and keyboard hot key operation, you can quickly realize the convenient control of the signal source, through the fiber optic KVM technology, to realize the seat between the seat, between the seat and the big screen a key push capture function, which greatly improves the efficiency of video screen and data display, information communication and sharing, emergency disposal of collaboration. This greatly improves the collaboration efficiency of video screen and data display, information communication and sharing, and emergency disposal.

4、Omni-directional visualization control experience

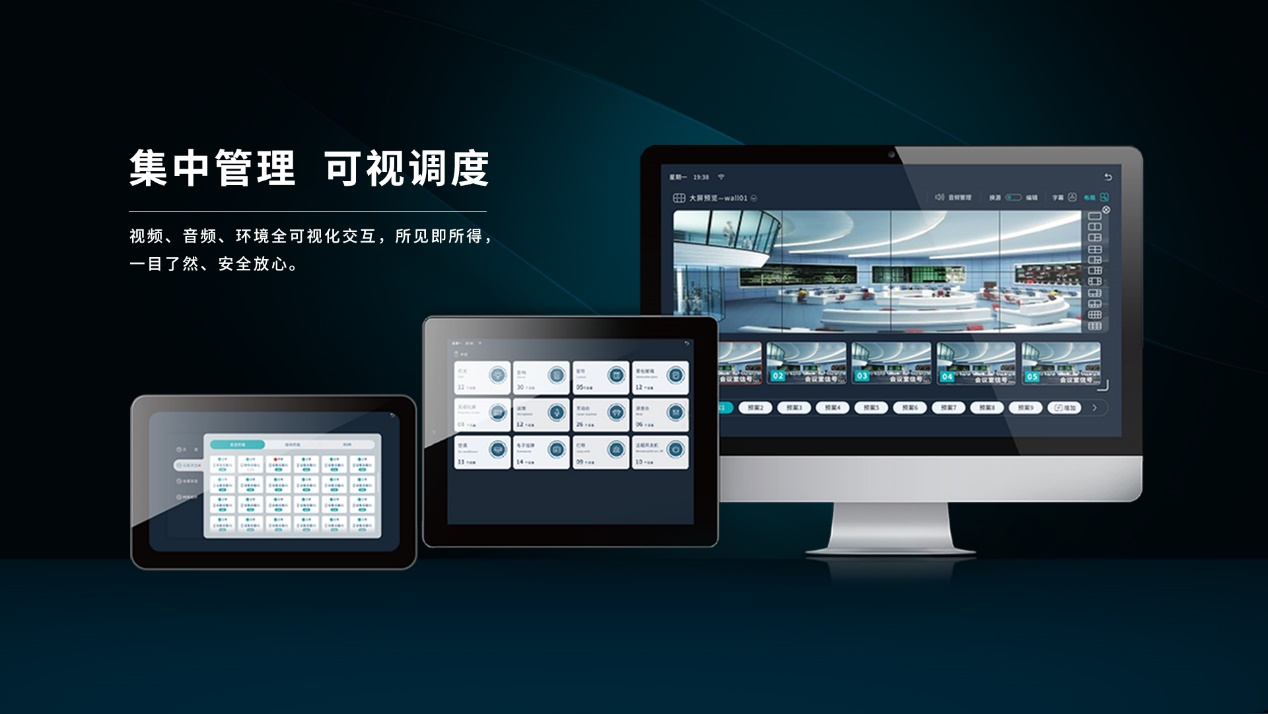

“ASTROGRAPH supports a full range of visual control experience, operators can preview all the signal sources in real time, monitor the signal status, and easily complete the signal switching, collaborative management and other functions in the minimalist interface, to grasp the situation at the production site at any time, and to find and solve problems in a timely manner. The operator can preview all the signal sources in real time and monitor the signal status.

Technology revolutionizes the traditional mining industry and leads the coal production management into a new era, TiTLIS&HYAVC creates the integrated solution of console and seat, which is deeply integrated into the mining operation and significantly enhances the production efficiency.
